Description
| Catalog | Function Description |
| Optical performance | Magnification power 3.5-7×31 |
| Digital Zoom 2 steps magnification, Max 2x | |
| Angle Of View 9° | |
| Objective Aperture 31mm | |
| Exit Pupil Distance 30mm | |
| F# for Objective lens 1.2 | |
| 3m~∞ in daytime; Viewing in the darkness up to 400M (monochrome) | |
| Eyepiece magnification 2x | |
| Video Output | 320x240 resolution TFT LCD |
| OSD menu display | |
| CVBS always output with VGA resolution | |
| Imager | Wide Dynamic Range High-sensitivity CMOS Sensor |
| Size 1/3" | |
| Resolution 640X480 | |
| IR LED | 3W Infared LED with 850nm |
| Micro SD Card | Support SDHC 4GB~32GB SD Card |
| Hardware Buttons | Power on/off |
| Snap | |
| Mode selection | |
| Zoom | |
| IR switch | |
| Operation | Preview |
| Record JPEG file in SD storage | |
| Capture JPEG file in SD storage | |
| Playback media file from SD storage | |
| Power | External power supply - DC 5V/1A |

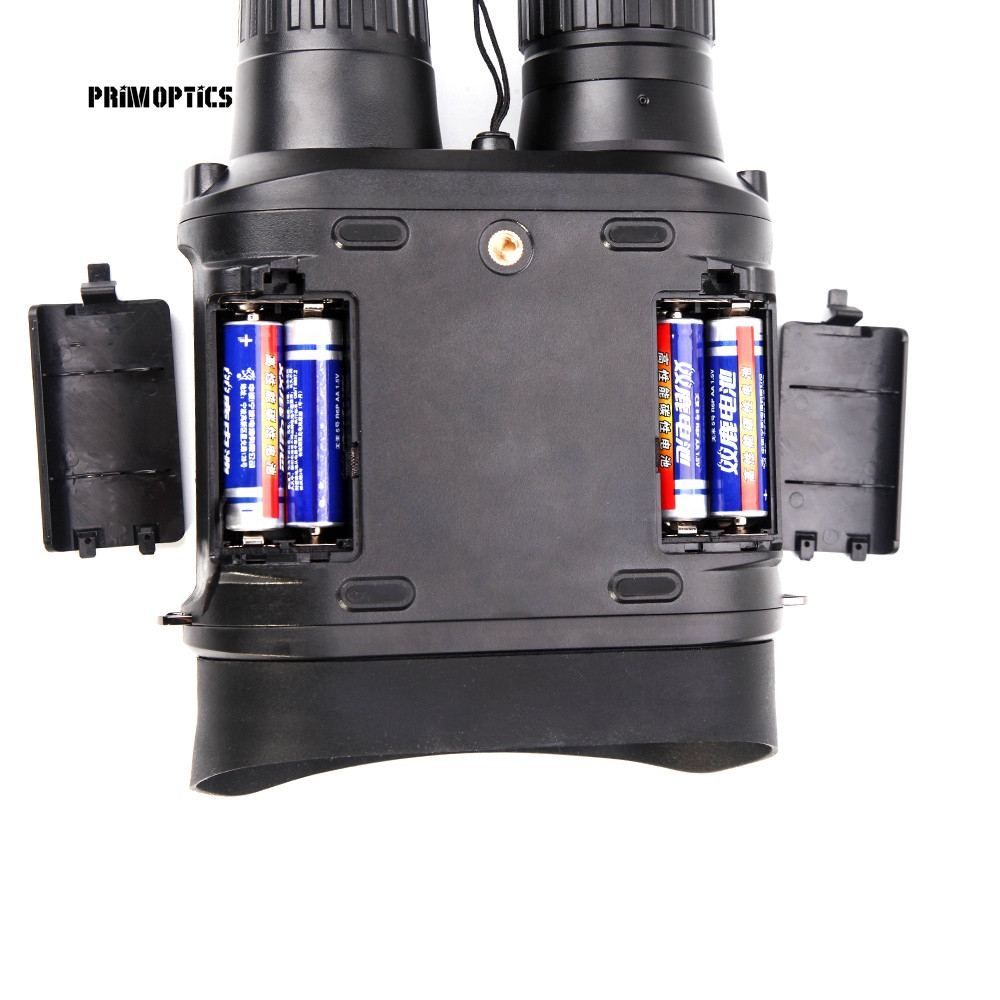

| 8 pcs AA battery 4.5V-6V | |
| Battery life: 12 hours working time with IR off | |
| Low battery warning | |
| System | 4 modes (Capture, Video, Playback,Menu) |
| Single frame Image Capture | |
| Video image Record | |
| Playback image | |
| Delete image | |
| 5 levels IR switch | |
| SD card format | |
| Power save(Off/1 min/ 3min/50 min) | |
| Language: English /Trad.Chinese/Simp.Japanese/French/ Spanish/Portuguese/Deutsch/Russian/Korean/Italian/LANGUAGES | |
| System Rest | |
| Light Freq. 50/60HZ | |
| RTC setting | |
| Version | |
| Size | Size 210mmx145mmx65mm |
| Net weight 750g(without battery) | |

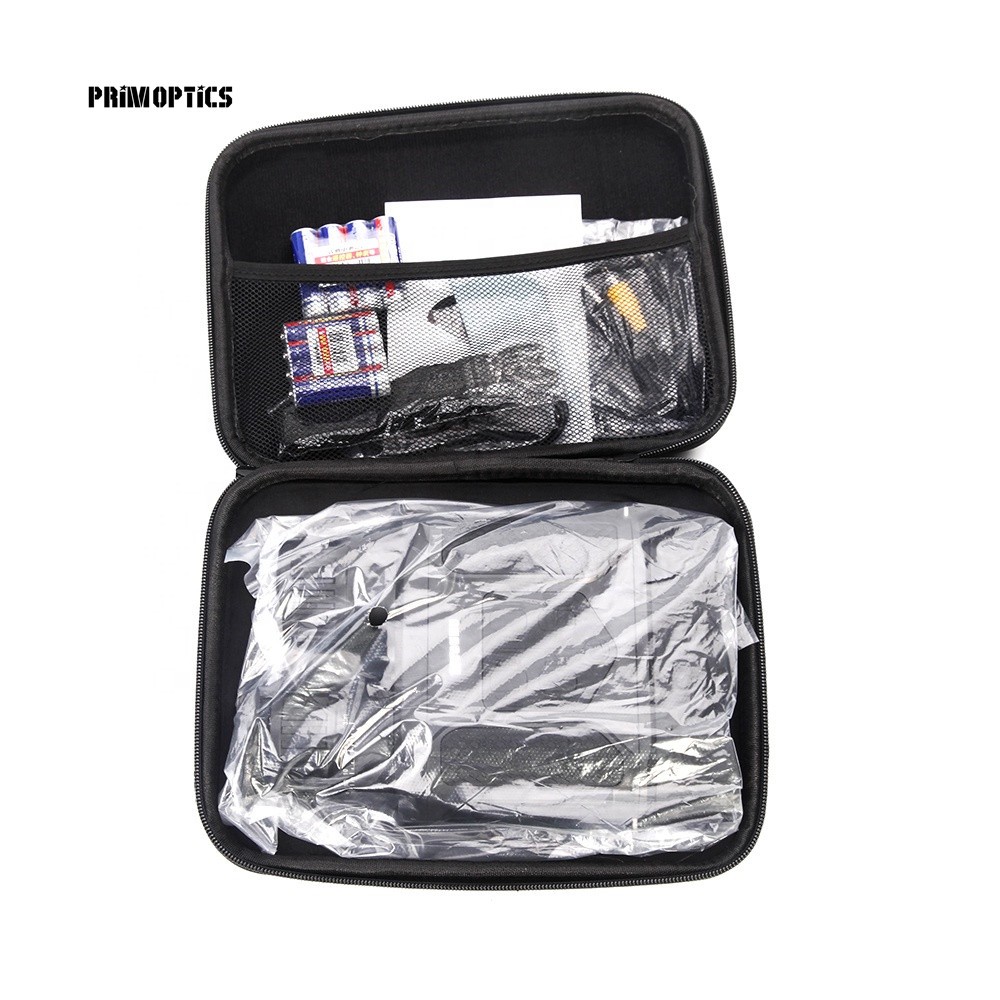

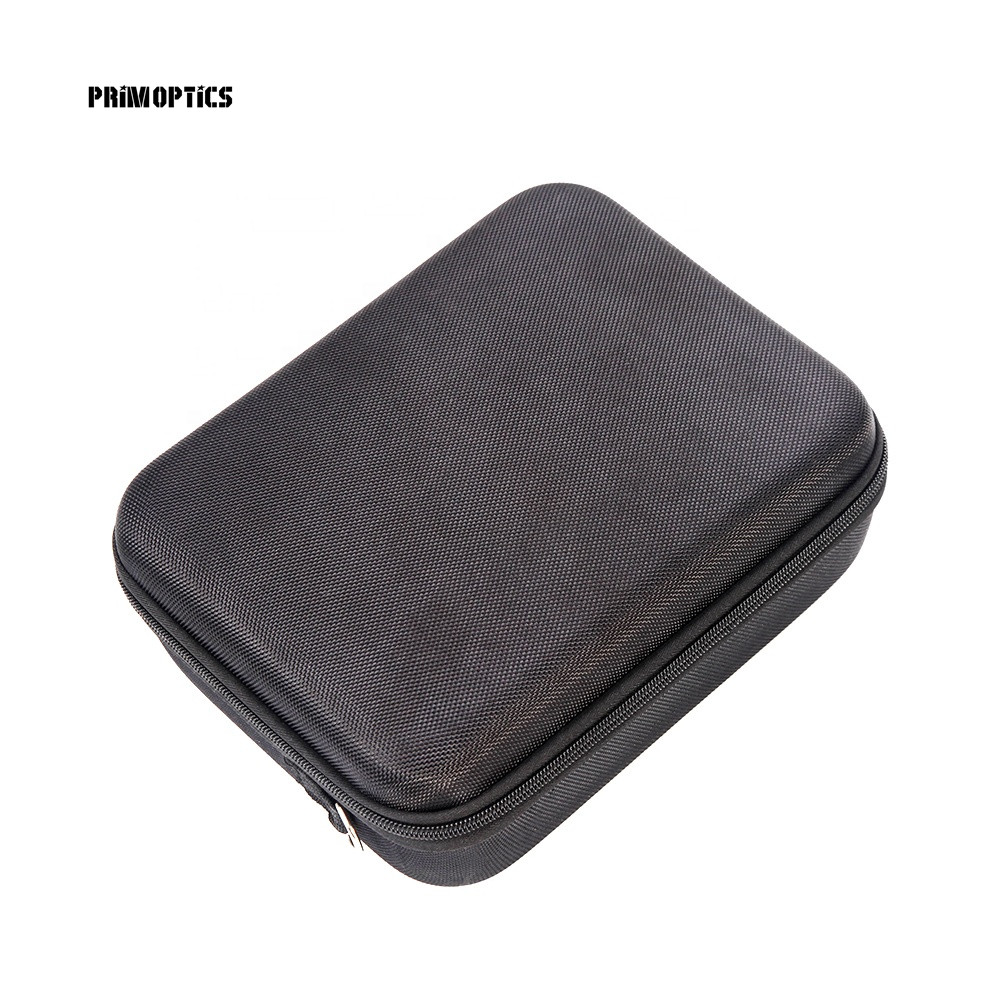

| Package | USB cable/ AV cable/ Micro SD card/ Bag/Manual |
