Description

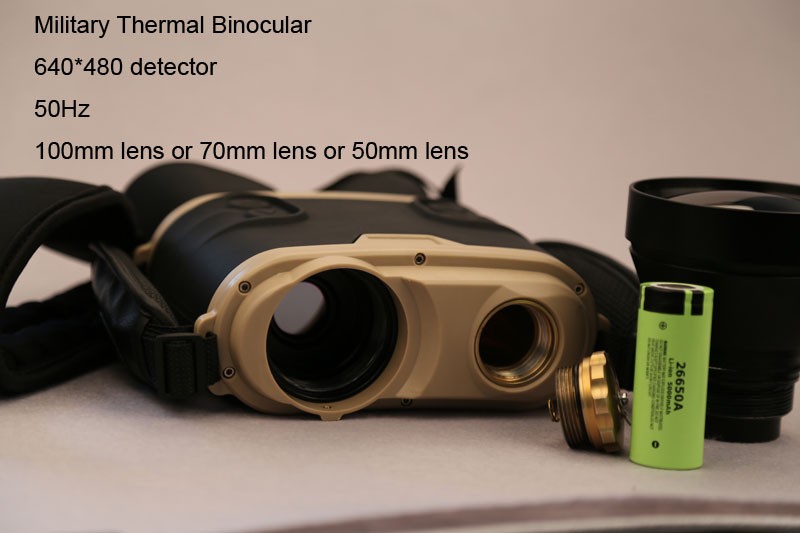

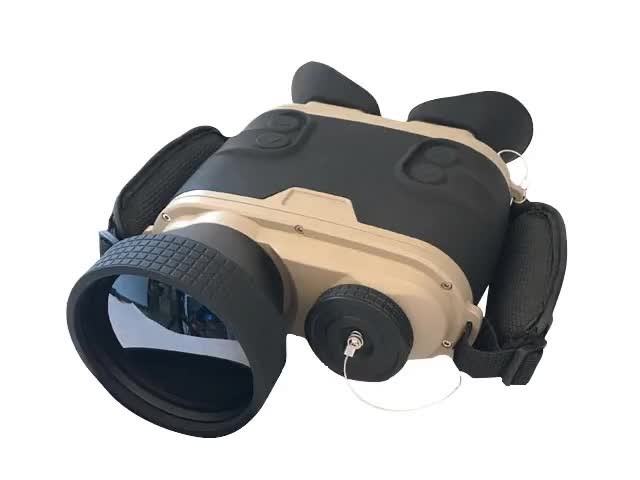

Production name | Military thermal imager infrared scope night vision binoculars |
Model | NV005 |
Detector type | Un-cooled Microbolometer |
Thermal sensor resolution | 640x480 |
Spectral range | 8~14μm |
Frame rate | 50Hz |
E-Zoom | 2x/4x |
Polarity | White hot/black hot/Multiple Color Modes |
Focus | Auto/Manual focusing |
Lens system | 100mm/F1.2 . |
FOV | 6.2 °x4.7 ° |
Display | 640x480 , Binocular LCOS display |
Battery type | 26650 rechargeable lithium battery battery, 4500mAh |
Battery working time | >6hours |
Power consumption | <3.0w(25℃) |
Start up time | <5s |
Video output interface | BNC, USB 2.0 |
Digital video storage | 16G/32G |
Housing | Full of Aluminum alloy |

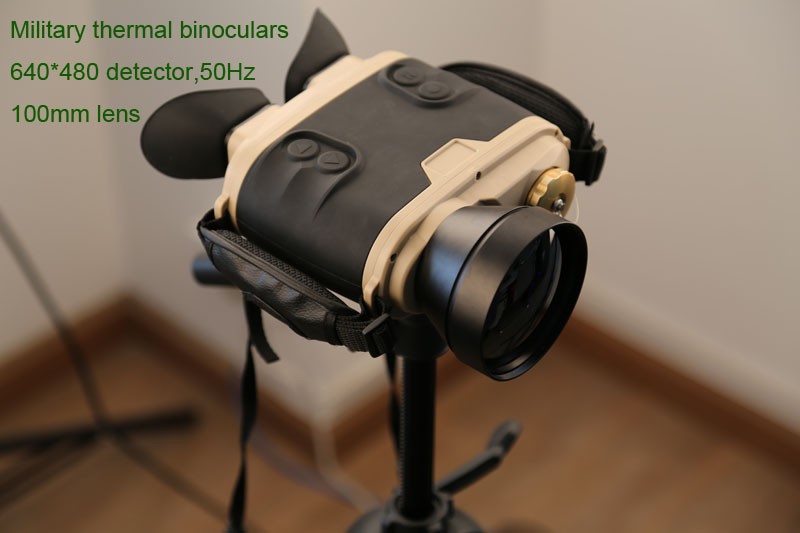

Mount adapter | Standard tripod mounting |
Image format | JPEG |
Video format | MPEG-4 |
Recording time | >8hours |
Operating temperature | -30°C ~ +55°C |
Storage temperature | -40°C ~ +60°C |
Humidity | 5%~95% |
Shock | 5-200-5Hz,acceleration of 2.5g |
Protection level | IP67 |
Dimension | 230X180X80mm |
Net weight | 1.3kg(exclude the battery) |
Gross weight | 5.5kg(include safety box) |

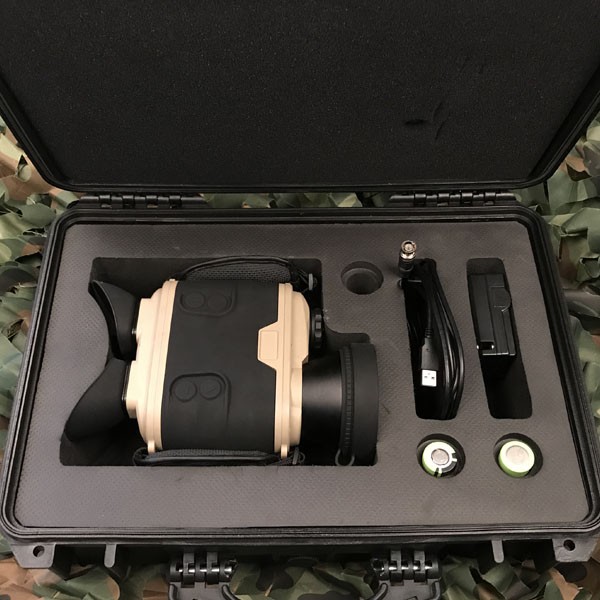

Safety box size | 460x320x180mm |
Detection range of the human(1.8x0.5m) | 2500m |
Recognition range of human | 1000m |
Detection range of vehicle(2.3x2.3m) | 3500m |
Recognition range of vehicle | 1500m |
